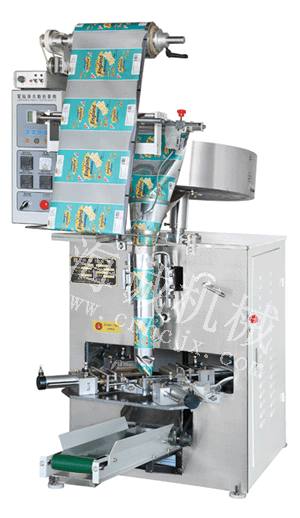

用途：Use
|
|
適合于湯圓、魚丸等物料的三角形袋包裝。
|
|
Suitable for triangle-bag packaging powder materials like puffin
|
|
|
|
特點：Features
|
1.設計合理，結構簡潔。
2.單片機、步進電機控制，袋長設定方便，準確。
3.調速簡單、快捷。
4.自動完成制袋、充填、計數、封口、切斷的全部包裝過程。
5.可選配色帶打碼機、充氣裝置(氣源自備)。
|
Reasonable design, simple structure.
Controlled by single-chip computer, stepping motor, convenient
and correct bag length setting.
Simple, fast speed regulation.
Automatic completion for bag-making, filling, counting, sealing and cutting
Optional: ribbon coding machine, gas-filled device (air source supplied by users),
|
|
|
|
主要技術參數 Main Technical parameter
|
|
|
|
包裝速度
|
Packing speed
|
20-60bags/min
|
|
制袋尺寸
|
Bag-making size
|
(L)50-180mm (W)50-130mm
|
|
計量范圍
|
Filling range
|
20-200ml
|
|
包裝膜寬
|
Film width
|
120-280mm
|
|
包裝材料
|
Packing materials
|
OPP/CPP PET/PE 等復合材料
|
|
薄膜厚度
|
Film thickness
|
0.04-0.08mm
|
|
電源功率
|
Power supply
|
AC220V 50Hz 1.8kw
|
|
機器尺寸
|
Machine dimensions
|
(L)1250×(W)900×(H)1800mm
|
|
整機重量
|
Machine weight
|
300kg
|
|
|
